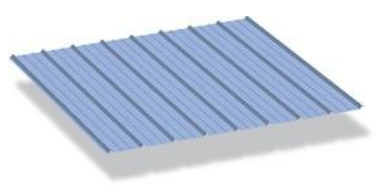

AG Panels











Ag Panels (Tuff Rib Panels) are exposed fastener panels well suited for roof and wall applications. The ag panel is very popular in the residential reroof and pole barn markets. These panels can be installed over open nailers or solid surface with a minimum recommended slope of 36” coverage, ribs are ¾” tall and spaced at 9” apart on center.

R Panels

r-panel

R and PBR (Purlin Bearing Rib) Panels – are exposed fastener panels well suited for roof and wall panels in pre-engineered metal buildings, pole barns, and re-roofing. These panels can be installed over open purlins or solid surface with a minimum slope of ½:12.

SSR Panels

SSR Panels

Standing Seam Roof (SSR) Panels – are a mechanically seamed trapezoidal standing seam roof system that are suited for simple sloped roofs without hips, valleys, dormers, etc. These panels can be installed over solid deck or substructural members and minimum slope of ¼:12.

SSA Panels

SSA Panels

Standing Seam Architectural (SSA Panels) are a durable vertical leg standing seam system and are one of the industry’s most preferred roofing panels. Nash Building Systems offers panel with 2 inch vertical seam and 16 inches of coverage. These panels can be installed over solid deck or open framing and minimum slope of: ½:12 for 2”.
